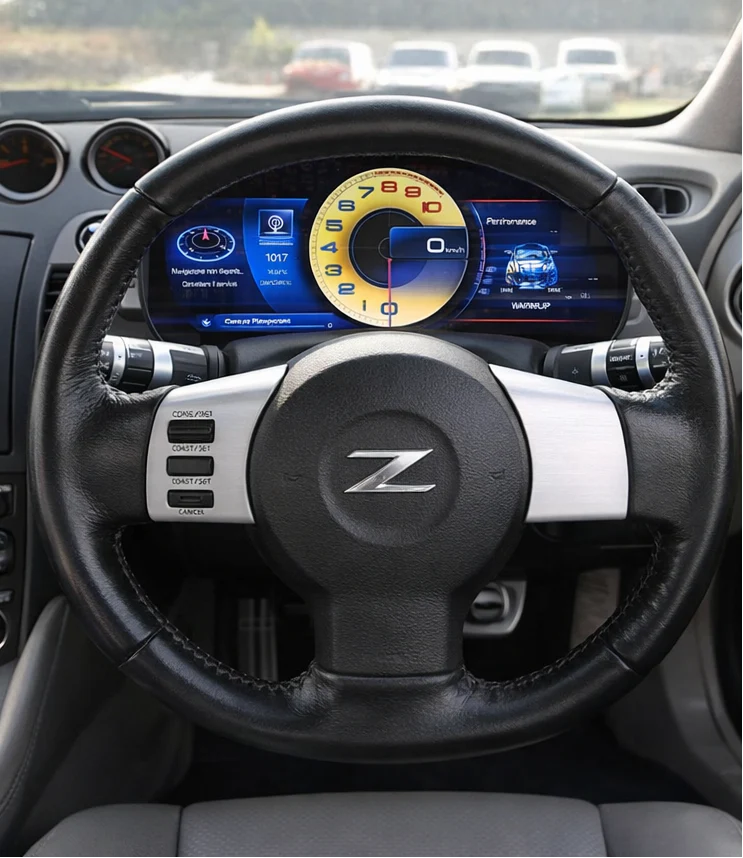

Why Choose Pinnacle’s Digital Cluster?

• Average Fuel Consumption Display
• Real-Time Tyre Pressure Monitoring (TPMS)
• Fuel Range / Mileage Warning
• Driving Statistics & Trip Computer Data
• Time, Date & Weekly Information Display
• Digital Speedometer & Engine RPM Display
• Integrated Compass & Altitude Display
• Engine & Vehicle Vital Signs Monitoring (Water Temperature, Oil Pressure, Battery Voltage, Oil Temperature, Transmission Temperature)
• Vehicle Body Angle / Tilt Display (Pitch & Roll)
• Enhanced Front Wheel Steering Angle Display
• Intelligent Four-Wheel Drive Power Distribution Display
• Doors / Tailgate / Hood Open Alerts
• Selectable Driving Themes (Classic / Sport / Off-Road)
• Automatic Headlamp Function Settings

Technical Specs

Processor & System
Powered by a T5 1.5GHz CPU running a Linux operating system, delivering exceptional stability and long-term reliability.

Vehicle Data Integration
Supports factory vehicle information including tyre pressure, oil & water temperature, oil pressure, fuel consumption, vehicle body balance, and more.

Seamless Installation
True plug-and-play design. No wire cutting, no vehicle modifications, and no additional coding required.

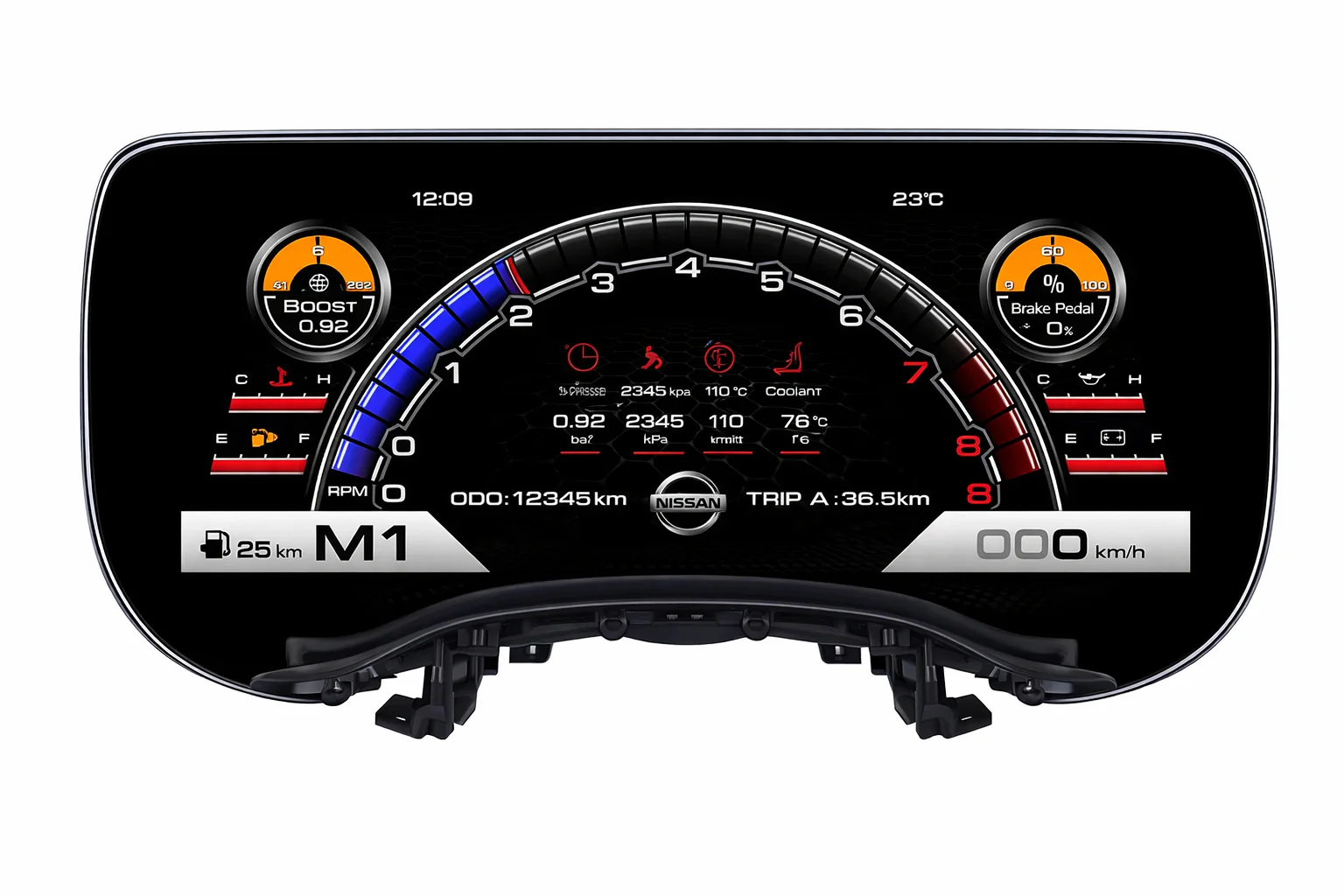

Display
12.3-inch HD IPS display
Resolution: 1920 × 720

Driving Themes
Selectable display modes: Classic / Sport / Off-Road

Operating Voltage
9V – 16V

Operating Current
0.8A – 1.5A

Standby Power Consumption
< 3mA
